PB15 Portable Plate Beveling Machine Lightweight Cold Cutting Tool for Weld Prep
The PB15 Portable Plate Beveling Machine is engineered for efficient and precise weld preparation on flat, curved, or rolled plates. It can also bevel both OD and ID pipe edges, perform deburring, and chamfer or countersink holes with a minimum diameter of 1.57″ (40 mm).

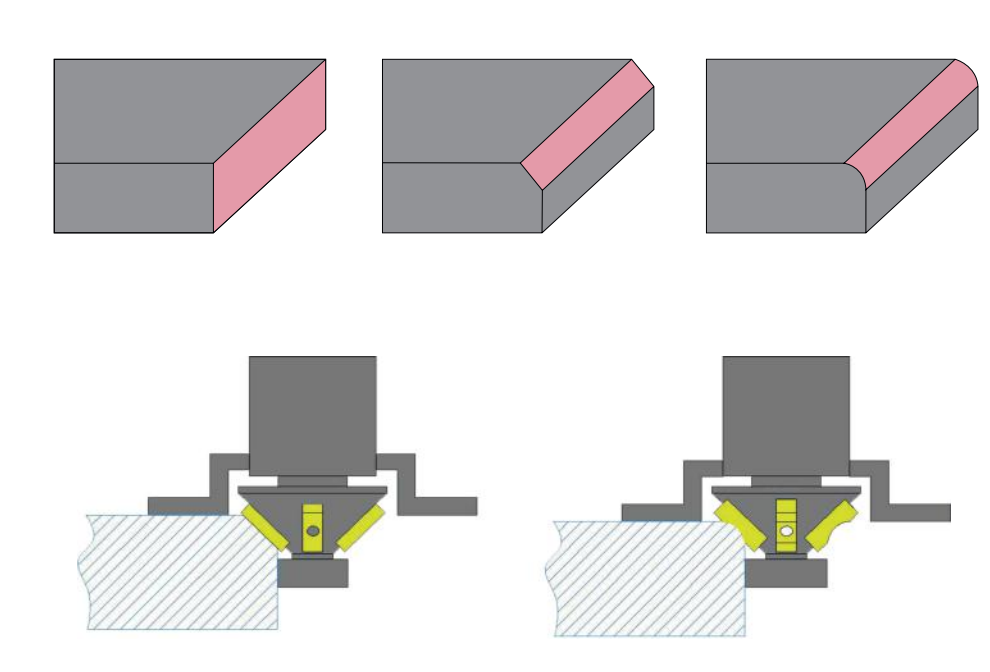

Equipped with interchangeable bevel milling heads and indexable carbide inserts, the PB15 supports bevel angles of 20°, 30°, 37.5°, 45°, and 60°, as well as a radius milling head for creating smooth 2 mm, 3 mm, and 4 mm edge radii.
Built with a lightweight ergonomic design and powered by a Metabo W24-230MVT electric motor, the PB15 delivers high cutting performance—up to 10 times faster than grinding—while minimizing operator fatigue. This makes it an ideal tool for weld prep, edge rounding, and surface preparation before painting or coating.
SPECIFICATIONS
| Model | PB15 Portable Plate Beveling Machine |
| Drive Type | Metabo Electric Motor |
| Motor Power | 2.4 kW (3.22 Hp) / 10 A |
| Power Supply | 220–240 V, 50/60 Hz |
| Wall Thickness Capacity | ≤ 0.315'' (8 mm) |

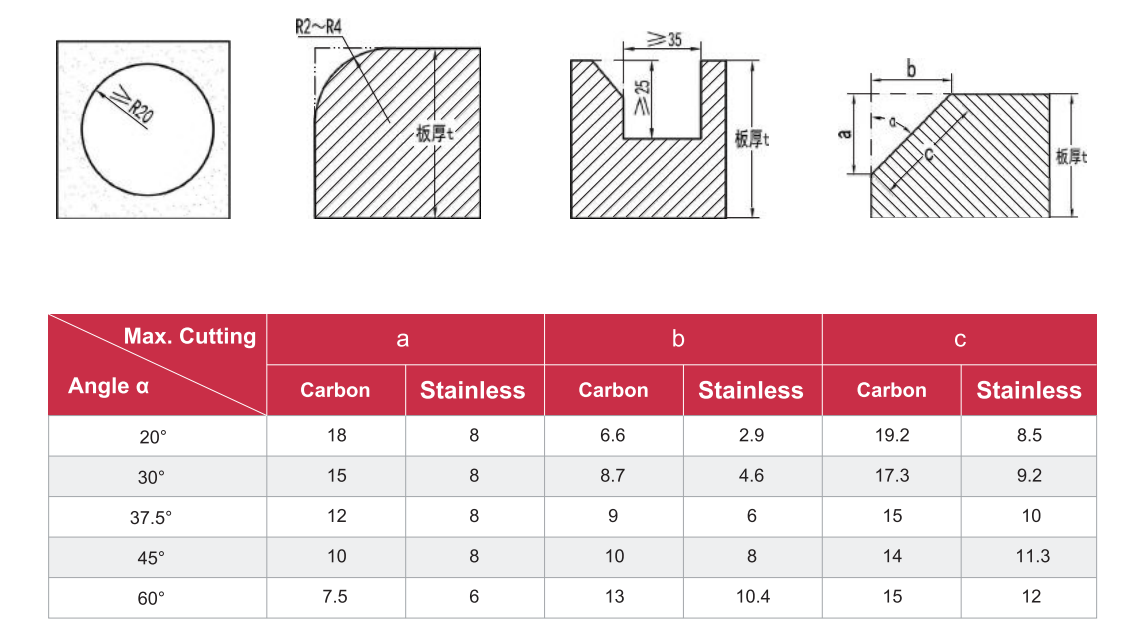

| Bevel Angles | 20°, 30°, 37.5°, 45°, 60° |
| Radius Milling | 2mm , 3 mm , 4 mm |
| Rotation Speed | 6600 rpm |
| Working Weight | 8.0 kg |
| Shipping Weight | 25.5 kg |
| Crate Dimensions (L×W×H) | 740 × 410 × 220 mm |
KEY FEATURES
Cold Cutting Technology
Ensures heat-free cutting with no thermal distortion or metallurgical changes.
Versatile Applications
Suitable for flat plate, curved plate, rolled plate, and pipe OD/ID beveling.
High Productivity
Processes edges up to 10× faster than manual grinding.
Precision Beveling
Guide plate and roller guides provide consistent and accurate bevel angles.
Lightweight & Ergonomic
Weighs only 8.0 kg, reducing operator fatigue.
Multi-Function Tool
Performs beveling, chamfering, countersinking, and radius milling.
Multiple Bevel Options
Bevel angles: 20°, 30°, 37.5°, 45°, and 60°. Radius milling: 2 mm, 3 mm, 4 mm.
APPLIACTIONS
- Plate and pipe edge preparation for welding
- OD and ID beveling of tubes and pipes
- Deburring and countersinking of holes
- Radius milling for smooth edges before painting and coating
- Fabrication in industries such as shipbuilding, pressure vessels, steel structures, and energy plants
