Pipe Beveler ID219 Portable ID Mounted Cold Cutting Weld Prep Tool
PRODUCT DESCRIPTION
The ID219 Pipe Beveler is a robust, fast, and portable weld end preparation machine designed for pipes made of stainless steel, carbon steel, and high-chromium alloys. With a working range of 2.56" to 8.62" (Φ65 mm to 219 mm), this ID-mounted beveling tool is widely used in industries such as power generation, petrochemicals, and pipeline maintenance. Utilizing a cold cutting process, it eliminates heat-affected zones to ensure high-quality, precise weld joints.
The machine supports various machining operations including beveling, counterboring, and facing, and offers easy operation, reliable performance, and flexible power options for on-site applications.
KEY FEATURES
Cold Cutting Technology
Completely cold cutting process eliminates heat-affected zones caused by flame or thermal cutting, preserving material integrity and ensuring high-quality welds.
Suitable for Various Materials
Capable of machining carbon steel, stainless steel, alloy steel, and other hard-to-machine materials.
Powerful Multi-Function Machining
Interchangeable tooling enables a wide range of operations including V-prep, U-prep, J-prep, counterboring, facing, and chamfering.
Self-Centering Clamping System
Three-jaw ID-mounted expanding mandrel ensures fast installation, high concentricity, and stable operation.
Adjustable Bevel Angles
Multiple tool holder options available; bevel angles from 0° to 45° can be freely selected. Custom tooling is available upon request.
SPECIFICATIONS
| Item | IDE-219 | IDP-219 |
| Drive Type | MT electric motor | Pneumatic motor |
| Motor Power | 220-240 V, 50/60 Hz | 1.3 m³/min @ 0.6 Mpa |
| Motor Power | 1.6 Kw (2.15 Hp) / 6 A | 1.0 Kw (1.34 Hp) |
| Cutting Range (ID-OD) | Φ65-219 mm (2.56"-8.62") | Φ65-219 mm (2.56"-8.62") |
| ID Mounting Range | Φ65-215 mm (2.56"-8.46") | Φ65-215 mm (2.56"-8.46") |
| Wall Thickness | ≤20 mm (0.79") | ≤20 mm (0.79") |
| Feed Stroke | 26 mm (1.02") | 26 mm (1.02") |
| Rotation Speed | 22 rpm | 50 rpm |
| Working Weight | 28.5 Kg | 27 Kg |
| Shipping Weight | 43 Kg | 40 Kg |
| Crate Dimensions | 830×310×340 mm | 730×310×340 mm |
DRIVE OPTIONS
The ID219 Pipe Beveler offers two power configurations to suit varying job site requirements:
IDE219 – MT Electric Motor Drive
This model features a 1.6 kW (2.15 Hp) MT electric motor, operating at 220–240 V, 50/60 Hz.
It delivers consistent torque and smooth operation, making it an excellent choice for environments with a stable and accessible power supply. Ideal for workshops, industrial plants, and power facilities where precision and continuous performance are required.
IDP219 – Pneumatic Motor Drive
Equipped with a 1.0 kW (1.34 Hp) pneumatic motor, this version requires 1.3 m³/min @ 0.6 MPa of compressed air.
The air-powered system is lightweight, spark-free, and well-suited for hazardous, flammable, or remote job sites where electrical motors may not be safe or practical. Its high-speed rotation ensures efficient beveling in demanding field applications.
STANDARD ACCESSORIES
| No. | Description | Qt |
| 1 | Modle ID219 assembly with motor | 1 |
| 2 | Jaw block No.1 (Φ70-80 mm,L=5 mm) | 6 |
| 3 | Jaw block No.2 (Φ80-90 mm,L=10 mm) | 6 |
| 4 | Jaw block No.3 (Φ90-100 mm,L=15 mm) | 6 |
| 5 | Jaw block No.4 (Φ100-110 mm,L=20 mm) | 6 |
| 6 | Jaw block No.5 (Φ110-120 mm,L=25 mm) | 6 |
| 7 | Jaw block No.6 (Φ120-130 mm,L=30 mm) | 6 |
| 8 | Jaw block No.7 (Φ130-140 mm,L=35 mm) | 6 |
| 9 | Jaw block No.8 (Φ140-150 mm,L=40 mm) | 6 |
| 10 | Extension block (Φ155-215 mm) | 3 |
| 11 | 42F-0822-0°.M42 Facing tool, 8×22 mm, 0° | 1 |
| 12 | 42B-0822-30°,M42 Beveling tool, 8×22 mm, 30° | 1 |
| 13 | 42B-0822-37.5°,M42 Beveling tool, 8×22 mm, 37.5° | 1 |
| 14 | Scoket head screw, M6×35 (used for Extension block) | 6 |
| 15 | Hex L-key 4 mm | 1 |
| 16 | Hex L-key 5 mm | 1 |
| 17 | Hex L-key 6 mm | 1 |
| 18 | Combination open end wrench, 22-24 mm | 1 |
| 19 | Eyebolt M10 | 1 |
| 20 | Manual and certificates | 1 |
MOUNTING RANGE
| Jaw Blocks and Ramp Sets |
| Jaw block No. | ID Mounting Range |
| None | Φ65-75mm (2.559"-2.953") |
| NO.01 | Φ75-85mm (2.953"-3.346") |
| NO.02 | Φ85-95mm (3.346"-3.740") |
| NO.03 | Φ95-105mm (3.740"-4.134") |
| NO.04 | Φ105-115 mm (4.134"-4.528") |
| NO.05 | Φ115-125 mm (4.528"-4.921") |
| NO.06 | Φ125-135 mm (4.921"-5.315") |
| NO.07 | Φ135-145 mm (5.315"-5.709") |
| NO.08 | Φ145-155 mm (5.709"-6.102") |
| Extension+NO.01 | Φ155-165 mm (6.102"-6.496") |
| Extension+NO.02 | Φ165-175 mm (6.496"-6.890") |
| Extension+NO.03 | Φ175-185 mm (6.890"-7.283") |
| Extension+NO.04 | Φ185-195 mm (7.283"-7.677") |
| Extension+NO.05 | Φ195-205 mm (7.677"-8.071") |
| Extension+NO.06 | Φ205-215 mm (8.071"-8.465") |

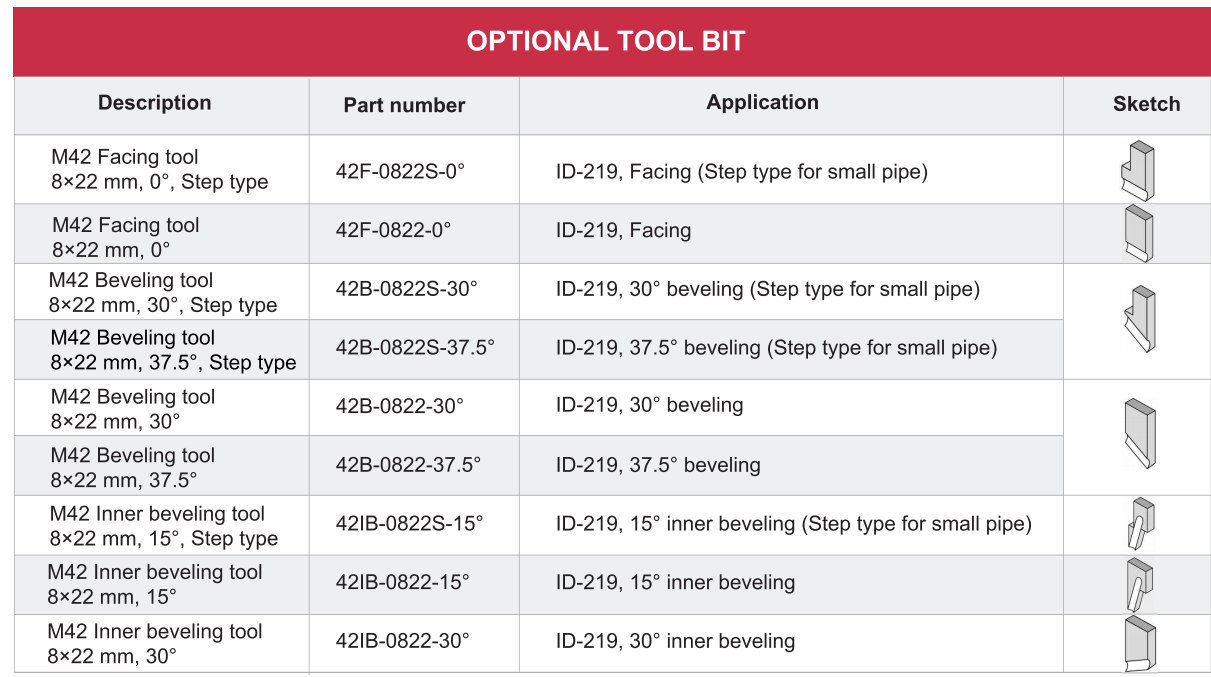

TOOLBIT OPTIONS
PIPE BEVELER SELECTION TABLE
| Model | ID Mounting Range | Cutting Range (ID-OD) |
| ID30 | Φ15-28 mm (0.59"-1.10") | Φ15-36 mm (0.59"-1.42") |
| ID90 | Φ25-79 mm (0.98"-3.11") | Φ25-89 mm (0.98"-3.50") |
| ID120 | Φ40-112 mm (1.57"-4.41") | Φ40-120 mm (1.57"-4.72") |
| ID159 | Φ60-160 mm (2.36"-6.30") | Φ60-159 mm (2.36"-6.26") |
| ID219 | Φ65-215 mm (2.56"-8.46") | Φ65-219 mm (2.56"-8.62") |
| ID252 | Φ80-260 mm (3.15"-10.24") | Φ80-273 mm (3.15"-10.75") |
| ID352 | Φ145-345 mm (5.71"-13.58") | Φ145-356 mm (5.71"-14.02") |
| ID426 | Φ250-426 mm (9.84"-16.77") | Φ250-426 mm (9.84"-16.77") |
| ID630 | Φ300-630 mm (11.81"-24.80") | Φ300-630 mm (11.81"-24.80") |
